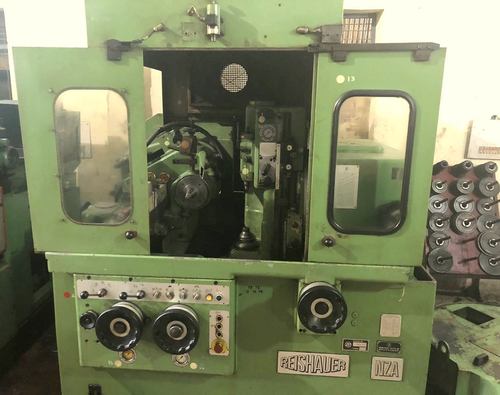

Rieshauer NZA Gear grinder
Rieshauer NZA Gear grinder Rieshauer NZA Gear grinder Rieshauer NZA Gear grinder Rieshauer NZA Gear grinder

Rieshauer NZA Gear grinder

Product Details:

X

Product Description

Rieshauer NZA Gear grinder consists of standard components like 170 mm wide gear, 420 mm long clamp, 300 mm wheel and maximum 130 teeth. It can maintain 200 mm slide stroke. The teeth of this machine maintain 45 degree angular direction. Rieshauer NZA Gear grinder requires total 9 kw power to function. Its dimension is 2500 x 2000 x 2300 mm. Total weight of this machine is 4600 kg. Standard of this system has been verified on the basis of its diameter, service life, production capacity and operating cost.

  • Make - Reishauer
  • Model - NZA
  • Max wheel diameter: 300 mm
  • Gear width: 170 mm
  • Module: -Min: 0,5 -Max: 5Max
  • clamping length: 420 mm
  • Max angle of teeth: 45 grade
  • Number of teeth: 12 -Min: 12 -Max: 130
  • Slide stroke: 200 mm
  • Helical lead: -Min: 200 mm -Max: 6000 mm
  • Max diameter of grinding wheel: 350 mm
  • Max width of grinding wheel: 84 mm
  • Total power requirement: 9 kW
  • Dimensions: 2500x2000x2300 mm
  • Total weight: 4600 kg

D. P. ENTERPRISES
